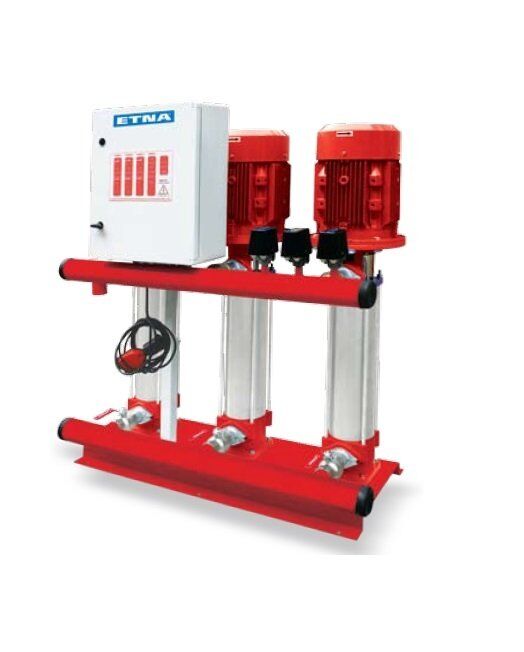

Y3 KO 35/5-110 - Vertical Shaft Three Pump Fire Hydrophore
5.890,73 USD
Category
Brand
Stock code
y3ko355110
Manufacturing Period
24 Month
Price
5.890,73 USD
3 PUMP VERTICAL SHAFT FIRE HYDRAULIC BOOTS (Y3 KO 35 SERIES) |  |
ETNA Y3 KO SERIES - 3 PUMP FIRE BOOSTER Fire Fighting in Installations Containing Only Fire Cabinets They are systems with automatic test systems, sound and light alarms. |  |
| GENERAL FEATURES |
• Electronic control panel • Low current protection against dry operation • 2nd protection preventing operation without water (5 m level float) • Adjustable low and high current-voltage protection • Phase sequence and phase loss protection • Monitoring of pump ready circuit and error conditions on the screen • Ability to monitor phase voltages and motor currents on the screen • In case of failure, the error name can be read on the screen. • Weekly test system, sound and light alarm • Suction and discharge collector, manometer and pressure switch • Spring type silent stainless steel check valve • Steel chassis with rubber pads to prevent vibration and oven-painted paint |
| TECHNICAL SPECIFICATIONS |
(SINGLE PUMP FLOW RATE)
| MODEL | STRENGTH | RATED CURRENT A | FLOW RATE (m³/h) | RECOMMENDED TANK | ||||
| HP | kW | 3x25 | 3x30 | 3x35 | ||||
| Y3 KO 35/3-55 | 3x7.5 | 3x5.5 | 3x14.1 | 50 | 40 | 33 | 750lt | PN10 |
| Y3 KO 35/4-75 | 3x10 | 3x7.5 | 3x18.5 | 64 | 55 | 40 | 750lt | PN10 |
| Y3 KO 35/5-110 | 3x15 | 3x11 | 3x19.5 | 80 | 67 | 50 | 750lt | PN10 |
| Y3 KO 35/6-110 | 3x15 | 3x11 | 3x28.5 | 92 | 77 | 60 | 750lt | PN16 |
| Y3 KO 35/7-150 | 3x20 | 3x15 | 3x28.5 | 112 | 92 | 70 | 750lt | PN16 |
| Y3 KO 35/8-150 | 3x20 | 3x15 | 3x32.5 | 130 | 108 | 80 | 750lt | PN16 |
| HYDROPHORE DIMENSIONS |
| MODEL | DIMENSIONS (mm) | ||||||
| Entrance | Exit | A | B | C | D | H | |
| Y3 KO 35/3-55 | 4" | 3" | 1040 | 780 | 468 | 190 | 880 |
| Y3 KO 35/4-75 | 4" | 3" | 1040 | 780 | 514 | 190 | 925 |
| Y3 KO 35/5-110 | 4" | 3" | 1050 | 1043 | 559 | 190 | 1290 |
| Y3 KO 35/6-110 | 4" | 3" | 1050 | 1043 | 605 | 190 | 1290 |
| Y3 KO 35/7-150 | 4" | 3" | 1050 | 1043 | 651 | 190 | 1290 |
| Y3 KO 35/8-150 | 4" | 3" | 1050 | 1043 | 696 | 190 | 1290 |
| SCOPE OF DELIVERY |
- 3xVertical Shaft Centrifugal Pump
- Three Pump Control Panel
- Manometer
- 3xPressure Switch
- Level Floater
- Pump Chassis
- Suction - Discharge Collectors
- The products listed above are delivered as a set, not separately.
| THINGS TO CONSIDER |
- KO Series Hydrophores and Hydrophore Expansion Tank Must Be Ordered Separately.
- Installation Service of the Product Belongs to the User.
- In order for the product to be under warranty, the first start-up must be done by ETNA Authorized Services.
- The commissioning process is free.
- Products that are not commissioned by an authorized service are out of warranty.
