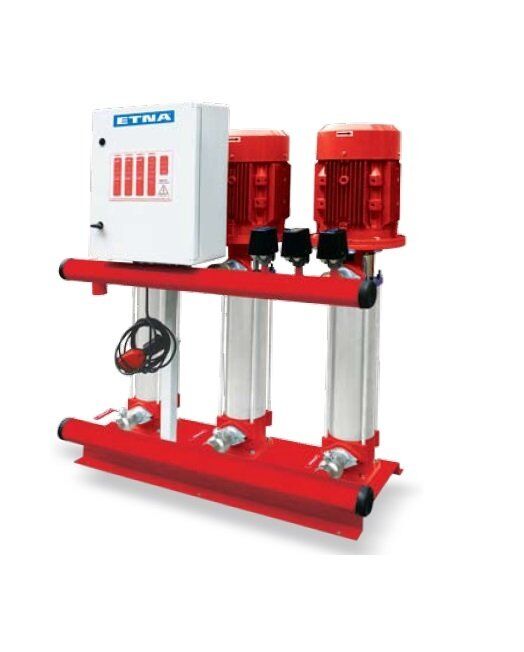

Y3 KO 25/6-55 - Vertical Shaft Three Pump Fire Hydrophore
4.370,73 USD
Category
Brand
Stock code
y3ko25655
Manufacturing Period
24 Month
Price
4.370,73 USD
3 PUMP VERTICAL SHAFT WATER HYDRAULIC BOOSTER (Y3 KO 25 SERIES) |  |
ETNA Y3 KO SERIES - 3 PUMP FIRE BOOSTER Fire Fighting in Installations Containing Only Fire Cabinets They are systems with automatic test systems, sound and light alarms. |  |
| GENERAL FEATURES |
| • Electronic control panel • Low current protection against dry operation • 2nd protection preventing operation without water (5 m level float) • Adjustable low and high current-voltage protection • Phase sequence and phase loss protection • Monitoring of pump ready circuit and error conditions on the screen • Ability to monitor phase voltages and motor currents on the screen • In case of failure, the error name can be read on the screen. • Weekly test system, sound and light alarm • Suction and discharge collector, manometer and pressure switch • Spring type silent stainless steel check valve • Steel chassis with rubber pads to prevent vibration and oven-painted paint |
| TECHNICAL SPECIFICATIONS |
(IT IS SINGLE PUMP FLOW RATE)
| MODEL | STRENGTH | RATED CURRENT A | FLOW RATE (m³/h) | RECOMMENDED TANK | ||||
| HP | kW | 3x18 | 3x24 | 3x30 | ||||
| Y3 KO 25/3-30 | 3x4 | 3x3 | 3x6.2 | 33 | 24 | 11 | 200lt | PN10 |
| Y3 KO 25/4-40 | 3x5.5 | 3x4 | 3x8 | 45 | 35 | 18 | 300lt | PN10 |
| Y3 KO 25/6-55 | 3x7.5 | 3x5.5 | 3x10.9 | 66 | 52 | 31 | 300lt | PN10 |
| Y3 KO 25/8-75 | 3x10 | 3x7.5 | 3x14.1 | 92 | 71 | 41 | 500lt | PN16 |
| Y3 KO 25/10-110 | 3x15 | 3x11 | 3x18.5 | 115 | 90 | 50 | 750lt | PN16 |
| HYDROPHORE DIMENSIONS |
| MODEL | DIMENSIONS (mm) | ||||||
| Entrance | Exit | A | B | C | D | H | |
| Y3 KO 25/3-30 | 3" | 21/2" | 800 | 560 | 393 | 165 | 800 |
| Y3 KO 25/4-40 | 3" | 21/2" | 800 | 560 | 457 | 165 | 860 |
| Y3 KO 25/6-55 | 3" | 21/2" | 800 | 560 | 572 | 165 | 990 |
| Y3 KO 25/8-75 | 3" | 21/2" | 800 | 560 | 686 | 165 | 1100 |
| Y3 KO 25/10-110 | 3" | 21/2" | 480 | 750 | 830 | 195 | 1290 |
| SCOPE OF DELIVERY |
- 3xVertical Shaft Centrifugal Pump
- Three Pump Control Panel
- Manometer
- 3xPressure Switch
- Level Floater
- Pump Chassis
- Suction - Discharge Collectors
- The products listed above are delivered as a set, not separately.
| THINGS TO CONSIDER |
- KO Series Hydrophores and Hydrophore Expansion Tank Must Be Ordered Separately.
- Installation Service of the Product Belongs to the User.
- In order for the product to be under warranty, the first start-up must be done by ETNA Authorized Services.
- The commissioning process is free.
- Products that are not commissioned by an authorized service are out of warranty.
