3 PUMP VERTICAL SHAFT FIRE HYDRAULIC BOOTS
(Y3 KO 15 SERIES)

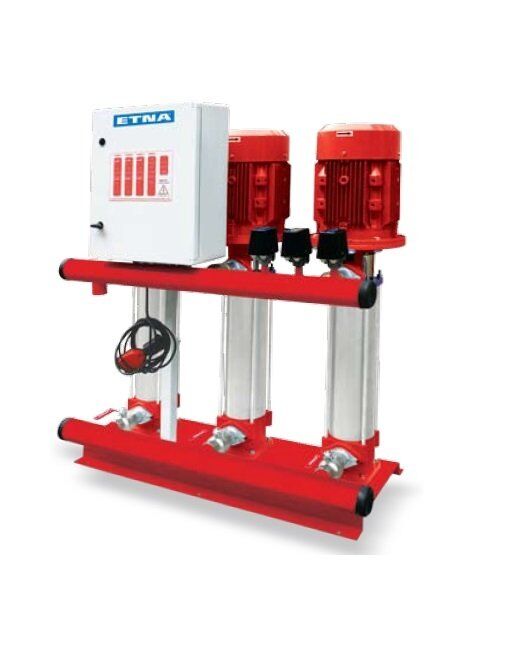

ETNA Y3 KO SERIES - 3 PUMP FIRE BOOSTER
Fire Fighting in Installations Containing Only Fire Cabinets
They are systems with automatic test systems, sound and light alarms.



GENERAL FEATURES

• Electronic control panel
• Low current protection against dry operation
• 2nd protection preventing operation without water (5 m level float)
• Adjustable low and high current-voltage protection
• Phase sequence and phase loss protection
• Monitoring of pump ready circuit and error conditions on the screen
• Ability to monitor phase voltages and motor currents on the screen
• In case of failure, the error name can be read on the screen.
• Weekly test system, sound and light alarm
• Suction and discharge collector, manometer and pressure switch
• Spring type silent stainless steel check valve
• Steel chassis with rubber pads to prevent vibration and oven-painted paint

TECHNICAL SPECIFICATIONS

(IT IS SINGLE PUMP FLOW RATE)
MODEL STRENGTH
RATED CURRENT
A
FLOW RATE (m³/h)
RECOMMENDED
TANK
HP kW 3x12 3x15 3x18
Y3 KO 15/4-22 3x3 3x2.2 3x4.9 51 42 30 200lt PN10
Y3 KO 15/5-30 3x4 3x3 3x6.2 64 53 37 200lt PN10
Y3 KO 15/6-40 3x5.5 3x3 3x8 77 64 45 300lt PN10
Y3 KO 15/7-40 3x5.5 3x4 3x8 90 79 56 300lt PN16
Y3 KO 15/8-55 3x7.5 3x5.5 3x10.9 107 90 67 300lt PN16
Y3 KO 15/9-55 3x7.5 3x5.5 3x10.9 120 102 73 300lt PN16
Y3 KO 15/12-75 3x10 3x5.5 3x14.1 161 137 95 500lt PN25


HYDROPHORE DIMENSIONS


MODEL DIMENSIONS (mm)
Entrance Exit A B C D H
Y3 KO 15/4-22 21/2" 21/2" 800 560 373 130 800
Y3 KO 15/5-30 21/2" 21/2" 800 560 411 130 800
Y3 KO 15/6-40 21/2" 21/2" 800 560 457 130 855
Y3 KO 15/7-40 21/2" 21/2" 800 560 495 130 895
Y3 KO 15/8-55 21/2" 21/2" 800 560 533 130 950
Y3 KO 15/9-55 21/2" 21/2" 800 560 572 130 990
Y3 KO 15/12-75 21/2" 21/2" 800 560 686 130 1100


SCOPE OF DELIVERY

  • 3xVertical Shaft Centrifugal Pump
  • Three Pump Control Panel
  • Manometer
  • 3xPressure Switch
  • Level Floater
  • Pump Chassis
  • Suction - Discharge Collectors
  • The products listed above are delivered as a set, not separately.
