Y2 KO 10/12-55 - Vertical Shaft Two Pump Fire Hydrophore
2.960,74 USD
Category
Brand
Stock code
y2ko101255
Manufacturing Period
24 Month
Price
2.960,74 USD
TWO PUMP VERTICAL SHAFT FIRE BOOSTER WITH ALARM KIT Y2 KO 10 SERIES |  |
ETNA Y2 KO SERIES TWO PUMP FIRE BOOSTERS; IT IS SUITABLE FOR USE ONLY IN SYSTEMS CONTAINING A FIRE CABINET. | .png) |
| GENERAL FEATURES |
| • Electronic control panel | • Ability to monitor phase voltages and motor currents on the screen |
| • Low current protection against dry operation | • In case of failure, the error name can be read on the screen. |
| • 2nd protection preventing operation without water (5 m level float) | • Weekly test system, sound and light alarm |
| • Adjustable low and high current-voltage protection | • Suction and discharge collector, manometer and pressure switch |
| • Phase sequence and phase loss protection | • Spring type silent stainless steel check valve |
| • Monitoring of pump ready circuit and error conditions on the screen | • Steel chassis with rubber pads to prevent vibration and oven-painted paint |
| PUMP FEATURES |
| Body and Shaft | Stainless steel |
| Fans and Diffusers | Noryl |
| Mechanical Seal | Carbon / Ceramic / NBR |
| Input - Output Body | Cast Iron |

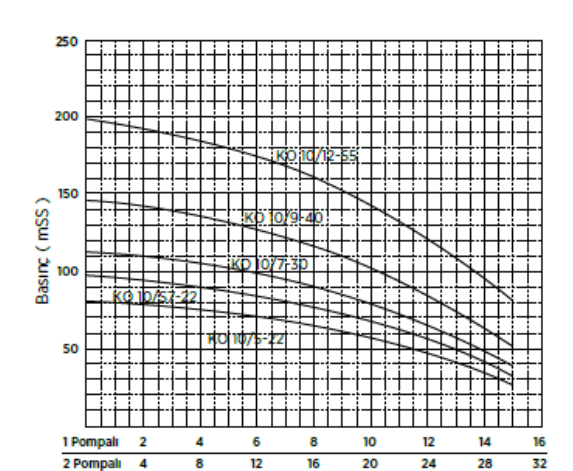

| PERFORMANCE CURVE |
| MODEL | STRENGTH (HP) | STRENGTH (kW) | RATED CURRENT (A) | FLOW RATE (m³/h) | RECOMMENDED BALANCE TANK | ||||
| 2x9 | 2x12 | 2x15 | |||||||
| Y2 KO 10/5-22 | 2x3 | 2x2,2 | 2x4.9 | Operating Pressure (mSS) | 61 | 48 | 27 | 200LT | PN10 |
| Y2 KO 10/S7-22 | 2x3 | 2x2,2 | 2x4.9 | 74 | 56 | 38 | 200LT | PN10 | |
| Y2 KO 10/7-30 | 2x4 | 2x3 | 2x6.2 | 86 | 66 | 39 | 300LT | PN16 | |
| Y2 KO 10/9-40 | 2x5.5 | 2x4 | 2x8 | 110 | 85 | 51 | 300LT | PN16 | |
| Y2 KO 10/10-40 | 2x5.5 | 2x4 | 2x8 | 125 | 95 | 59 | 300LT | PN16 | |
| Y2 KO 10/12-55 | 2x7.5 | 2x5.5 | 2x10.9 | 153 | 122 | 81 | 300LT | PN25 | |
| HYDROPHORE DIMENSIONS |
| MODEL | INLET - OUTLET DIAMETER | A | B | C | D | H |
| Y2 KO 10/5-22 | 2"-2" | 670 | 530 | 411 | 130 | 800 |
| Y2 KO 10/S7-22 | 2"-2" | 670 | 530 | 487 | 130 | 852 |
| Y2 KO 10/7-30 | 2"-2" | 670 | 530 | 487 | 130 | 852 |
| Y2 KO 10/9-40 | 2"-2" | 670 | 530 | 572 | 130 | 963 |
| Y2 KO 10/10-40 | 2"-2" | 670 | 530 | 610 | 130 | 1000 |
| Y2 KO 10/12-55 | 2"-2" | 670 | 530 | 687 | 130 | 1100 |
| THINGS TO CONSIDER |
• Excluding connection flex and balancing tank.
• Jockey (pilot) pump is not included in the price and is optional. Add the appropriate KO 4-7 model hydrophore price to the stated price!
• Fire hydrophores with alarm kits cannot be used in sprinkler systems.
• There is no "Thermal Magnetic Switch" in the control panels of fire hydrophores with alarm kit. For this reason, fire hydrophores should not be used for the purpose of pressurizing domestic water. In case of using a tank other than its intended purpose and below the recommended tank volume, the products will be out of warranty.
• Flexible hose is not recommended for pressures of 16 bar and above.
