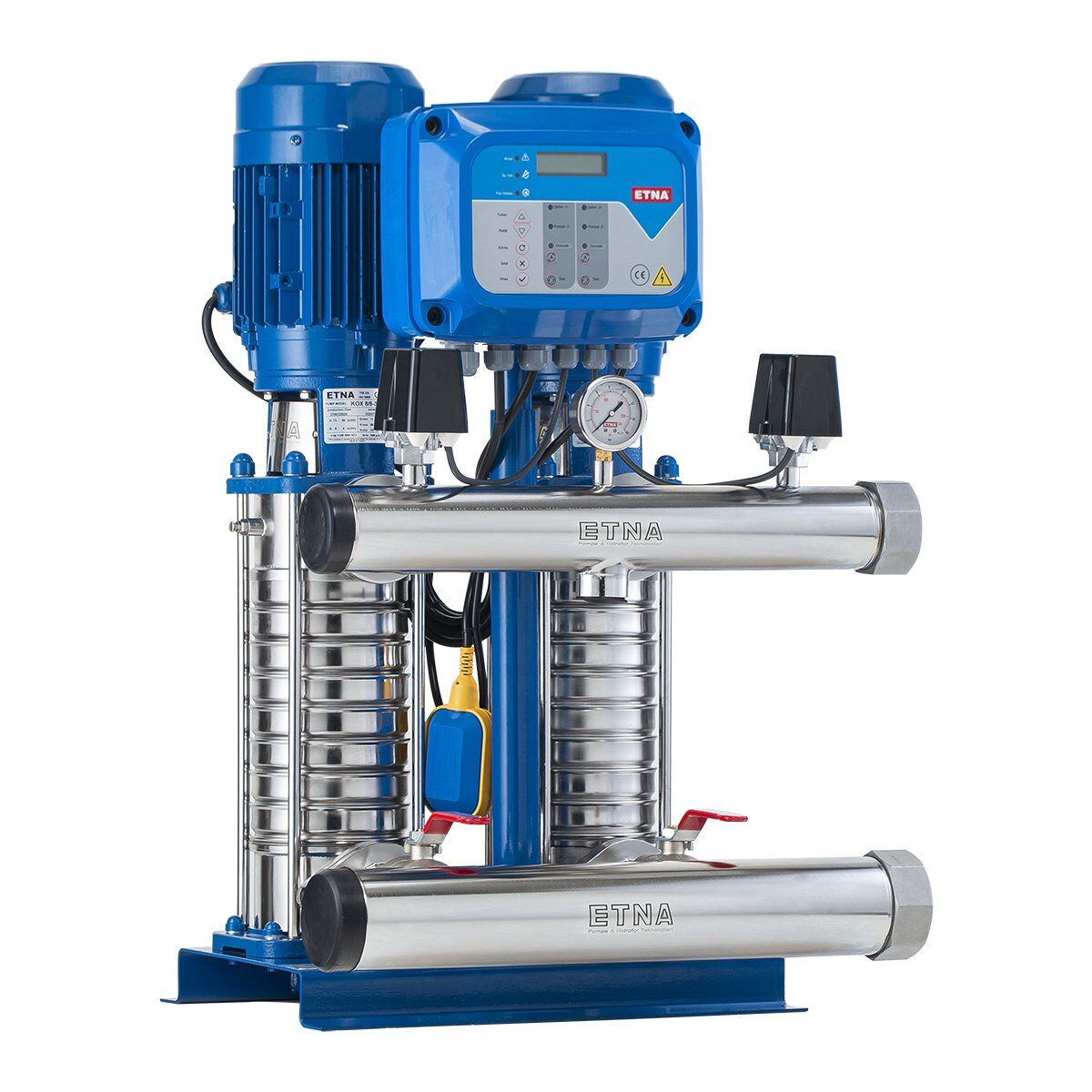

2KO-ST 12/12-75 (24 Floors-120 Flats) Two Pump Complete Stainless Steel Hydrophore
3.915,45 USD
Category
Brand
Stock code
2kost121275
Manufacturing Period
24 Month
Price
3.915,45 USD
COMPLETE STAINLESS STEEL HYDROPHORS WITH TWO PUMPS (2KO-ST SERIES) |  |
All surfaces in contact with water are made of AISI 304 quality stainless steel, They are compact, high efficiency pumps. With bottom inlet, top outlet connection structure, It takes up little space and is preferred in hydrophore systems. Areas of Use • Water purification systems | .jpg) |
| GENERAL FEATURES |
• Electronic control panel
• Low current protection against dry operation
• 2nd protection preventing operation without water (5 m level float)
• Adjustable low and high current-voltage protection
• Phase sequence and phase loss protection
• Ability to read the error name on the screen in case of failure
• Monitoring of pump ready circuit and error conditions on the screen
• Ability to monitor phase voltages and motor currents on the screen
• Sequential operation synchronous aging feature
• Spring type silent check valve and five-way valve
• Suction and discharge collector, manometer and pressure switch
• Steel chassis with rubber pads to prevent vibration and oven-painted paint
| MATERIAL PROPERTIES |
| Pump Body | AISI 304 Stainless Steel | ||
| Pump Shaft | AISI 304 Stainless Steel | ||
| Fan and Diffuser | AISI 304 Stainless Steel | ||
| Mechanical Seal | Carbon / Ceramic / NBR | ||
| Input-Output Body | AISI 304 Stainless Steel | ||
| Liquid Temperature | 0-100 ° C | ||
| PERFORMANCE VALUES |
| MODEL | STRENGTH | RATED CURRENT (A) | STUDY PRESSURE | FLOW RATE (m³/h) | Recommended Tank | ||||
| HP | kW | 2x9 | 2x12 | 2x15 | VOLUME | PRESSURE | |||
| 2KO-ST12/5-30 | 2x4 | 2x3 | 2x6.2 | mSS | 57 | 50 | 39 | 200lt | PN10 |
| 2KO-ST12/6-40 | 2x5.5 | 2x4 | 2x8 | 68 | 60 | 47 | 200lt | PN10 | |
| 2KO-ST12/8-55 | 2x7.5 | 2x5.5 | 2x10.9 | 91 | 80 | 63 | 200lt | PN10 | |
| 2KO-ST12/9-55 | 2x7.5 | 2x5.5 | 2x10.9 | 103 | 91 | 72 | 300lt | PN16 | |
| 2KO-ST12/10-75 | 2x10 | 2x7.5 | 2x14.1 | 115 | 101 | 90 | 300lt | PN16 | |
| 2KO-ST12/12-75 | 2x10 | 2x7.5 | 2x14.1 | 137 | 121 | 95 | 300lt | PN16 | |
* Closed Expansion Tank and Connection Flex are not included in the scope of delivery. If there is no existing expansion tank, it must be ordered separately.
| HYDROPHORE DIMENSIONS |
| MODEL | DIMENSIONS (mm) | ||||||
| Entrance | Exit | A | B | C | D | H | |
| 2KO-ST12/5-30 | 21/2" | 21/2" | 670 | 780 | 360 | 165 | 820 |
| 2KO-ST12/6-40 | 390 | 850 | |||||
| 2KO-ST12/8-55 | 450 | 1030 | |||||
| 2KO-ST12/9-55 | 490 | 1060 | |||||
| 2KO-ST12/10-75 | 510 | 1090 | |||||
| 2KO-ST12/12-75 | 570 | 1150 | |||||
