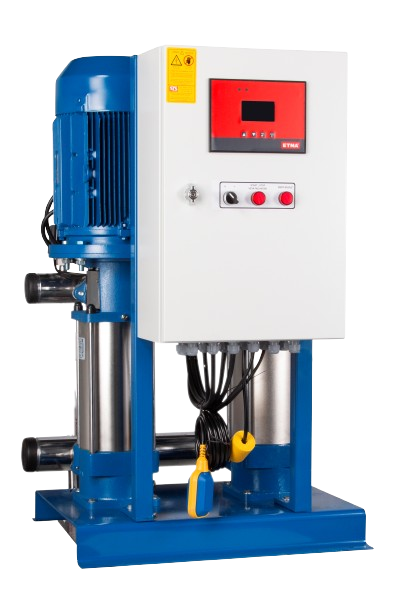

2 KO 45/4-110 Two Pump Vertical Shaft Domestic Water Hydrophore
5.671,54 USD
Category
Brand
Stock code
2ko454150
Manufacturing Period
24 Month
Price
5.671,54 USD
VERTICAL SHAFT MULTI-STAGE CENTRIFUGAL PUMP HYDROPHORE SETS (2 KO 45 SERIES) |  |
| Residence-apartment, commercial building (hotel, hospital, dormitory, school etc.) required in irrigation systems and agricultural applications Designed and manufactured to meet the need for pressurized water are hydrophore systems. |  |
| GENERAL FEATURES |
- • Epoxy painted DKP control panel
- • Low current protection against dry operation
- • 2nd protection preventing operation without water (5 m level float)
- • Adjustable low and high current-voltage protection
- • Phase sequence and phase loss protection
- • Monitoring of pump ready circuit and error conditions on the screen
- • In case of failure, the error name can be read on the screen.
- • Sequential operation synchronous aging feature
- • Suction and discharge collector, manometer and pressure switch
- • Spring type silent stainless steel check valve
- • Steel chassis with rubber pads to prevent vibration and oven-painted paint
| STRUCTURAL FEATURES |
| Body and Shaft | Stainless steel |
| Fans and Diffusers | Nolly |
| Mechanical Seal | Carbon / Ceramic / NBR |
| Input - Output Body | Cast Iron |
| TECHNICAL SPECIFICATIONS |
* CURVE VALID FOR A SINGLE PUMP.
| MODEL | ENGINE POWER HP | ENGINE POWER kW | RECOMMENDED TANK VOLUME |
| 2 KO 45/3-110 | 2x15 | 2x11 | 1000LT - PN10 |
| 2 KO 45/4-110 | 2x15 | 2x11 | 1000LT - PN10 |
| 2 KO 45/5-150 | 2x20 | 2x15 | 1000LT - PN16 |
| 2 KO 45/6-185 | 2x25 | 2x18.5 | 1000LT - PN16 |
| DIMENSIONS |
| MODEL | INLET - OUTLET DIAMETER | A | B | C | D | H |
| 2 KO 45/3-110 | 4"-3" | 650 | 750 | 551 | 190 | 1060 |
| 2 KO 45/4-110 | 4"-3" | 650 | 750 | 613 | 190 | 1120 |
| 2 KO 45/5-150 | 4"-3" | 650 | 750 | 695 | 190 | 1310 |
| 2 KO 45/6-185 | 4"-3" | 650 | 750 | 757 | 190 | 1370 |
* Dimensions stated above are in mm.
| THINGS TO CONSIDER |
- Connection flex and balancing tank must be ordered separately.
- The stop pressure is minimum 1.5 bar above the start pressure.
- In order for the product to be under warranty, the first start-up must be done by our authorized services.
- If the hydrophore will suction from minus elevation, please get information from our company.
