1 KO 7/6-11 - Dik Milli Kullanma Suyu Hidroforu
741,46 USD
Brand
Stock code
1ko7611
Manufacturing Period
24 Month
Price
741,46 USD

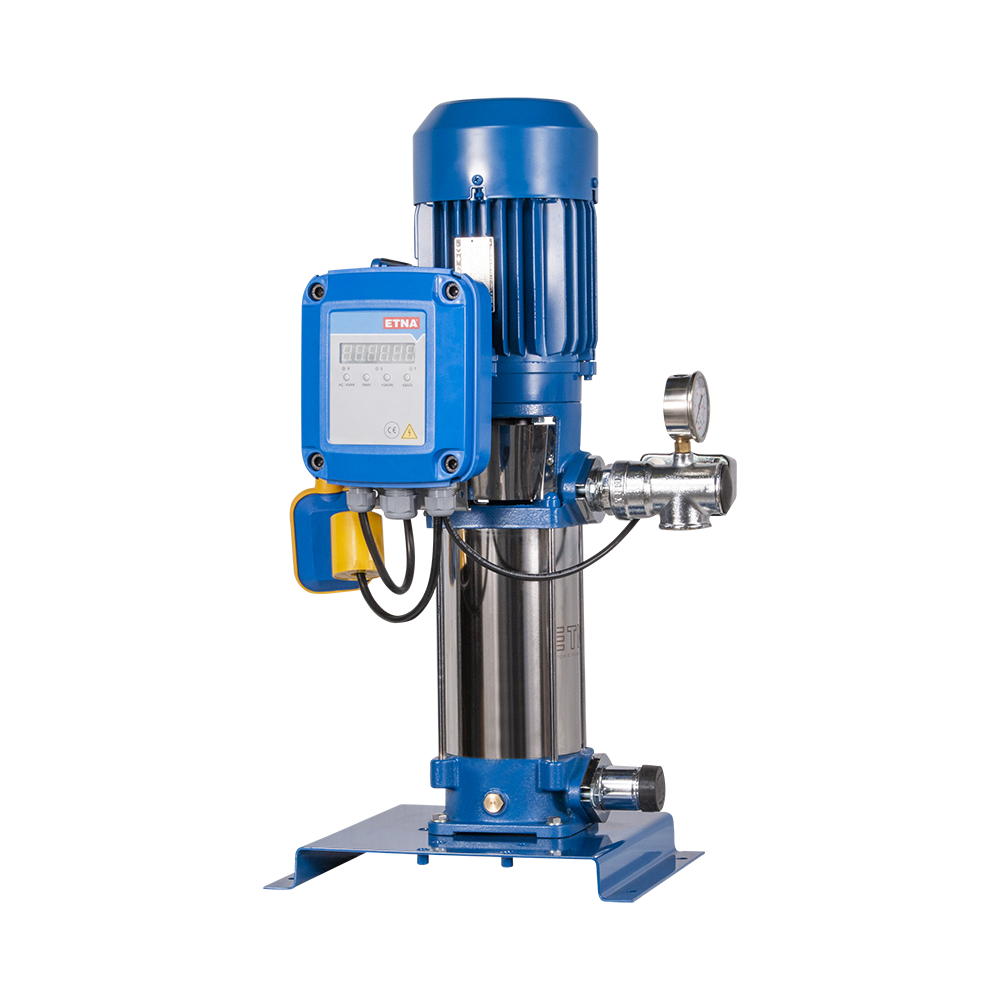

VERTICAL SHAFT MULTI-STAGE CENTRIFUGAL PUMP HYDROPHORE SETS (1 KO 7 SERIES) |  |
Residence-apartment, commercial building (hotel, hospital, dormitory, school etc.) required in irrigation systems and agricultural applications Designed and manufactured to meet the need for pressurized water are hydrophore systems. |  |
| GENERAL FEATURES |
- Electronic control panel
- Low current protection against dry operation
- 2nd protection preventing dry operation (5 m level float)
- Adjustable low and high current-voltage protection
- Phase sequence and phase loss protection
- Ability to monitor fault and error conditions on the screen via LEDs
- Ability to read current and voltage values on the screen
- Spring type silent stainless steel check valve
- Manometer and pressure switch
- Steel chassis with rubber pads to prevent vibration and oven-painted paint
| STRUCTURAL FEATURES |
| Body and Shaft | Stainless steel |
| Fans and Diffusers | Nolly |
| Mechanical Seal | Carbon / Ceramic / NBR |
| Input - Output Body | Cast Iron |
| TECHNICAL SPECIFICATIONS |
| MODEL | ENGINE POWER HP | ENGINE POWER kW | RECOMMENDED TANK VOLUME |
| 1 KO 7/6-11 | 1.5 | 1.1 | 100LT - PN10 |
| 1 KO 7/7-15 | 2 | 1.5 | 100LT - PN10 |
| 1 KO 7/8-22 | 3 | 2.2 | 100LT - PN10 |
| 1 KO 7/9-30 | 4 | 3 | 100LT - PN16 |
| 1 KO 7/10-30 | 4 | 3 | 100LT - PN16 |
| DIMENSIONS |
| MODEL | INLET - OUTLET DIAMETER | A | B | C | D | H |
| 1 KO 7/6-11 | 11/4" - 11/4" | 300 | 400 | 368 | 130 | 580 |
| 1 KO 7/7-15 | 11/4" - 11/4" | 300 | 400 | 392 | 130 | 605 |
| 1 KO 7/8-22 | 11/4" - 11/4" | 300 | 400 | 409 | 130 | 630 |
| 1 KO 7/9-30 | 11/4" - 11/4" | 300 | 400 | 433 | 130 | 710 |
| 1 KO 7/10-30 | 11/4" - 11/4" | 300 | 400 | 457 | 130 | 730 |
* Dimensions stated above are in mm.
| THINGS TO CONSIDER |
- Thanks to its special bearing system, it is resistant to working without water for long periods.
- Connection flex and balancing tank must be ordered separately.
- The stop pressure is minimum 1.5 bar above the start pressure.
- In order for the product to be covered by the warranty, the first start-up must be done by our authorized services.
- If the hydrophore will suction from minus elevation, please get information from our company.
